An unwinding coil or decoiler/uncoiler, contains a coil with sheet material. The core can change in diameter so that the coil can be clamped and remain fixed on the shaft. A decoiler comes in many forms; manually operated, or electrically driven, or double mandrel, with straightener, straightener and feeder. Depending on the model, options include:
- Powered/non-powered
- Mechanical clamp/release
- Tightener above (pneumatic)
- Distance sensor
- Engine speed and acceleration control system
- Loop control
Manual decoiler
from € 2.265,-
The manual decoiler can be a single-band, double-band and console decoiler. Manual unwinding reels/decoilers are equipped with an adjustable disc brake and a handle for rotating the mandrel. The handle is for easy attachment and release of the mandrel.
Coil trucks are also available.

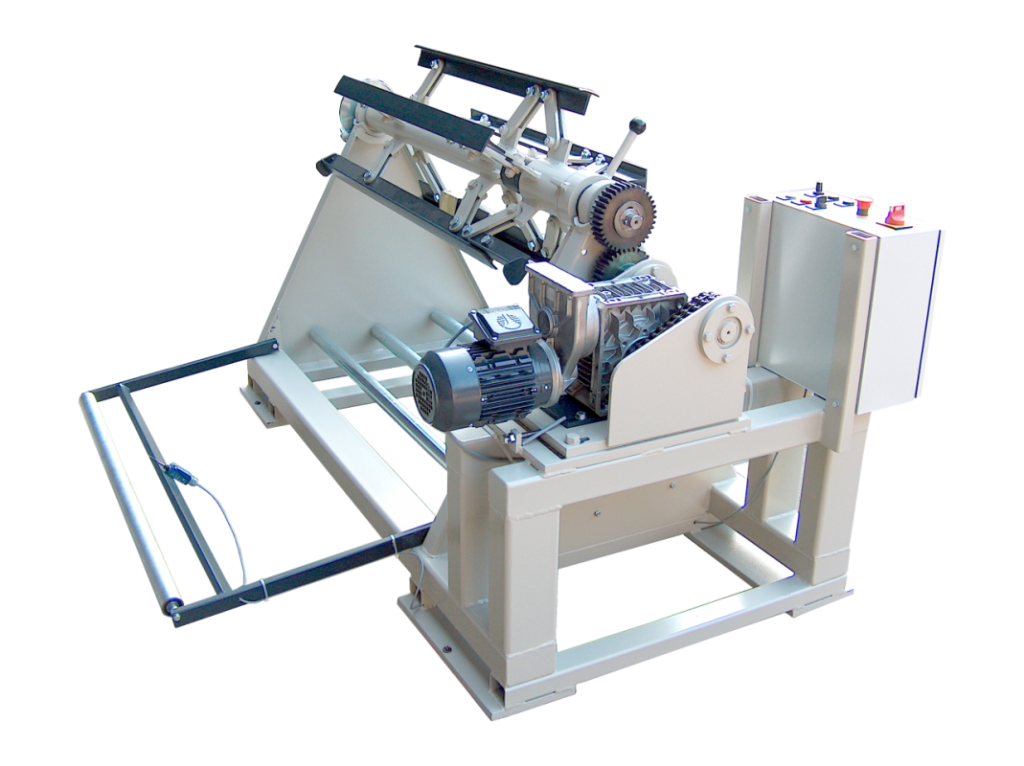

The large photo shows a RAZ-ENK 500, but other specifications are also available.
Strojegradnja SAS – a quality and reliable manufacturer with an eye for development trends and customers’ needs.
We are a family business, specialized in the development, production and sale of machines for bending, cutting and storing sheet metal. With our knowledge, experience and tradition, we manufacture machines, which facilitate work and contribute to greater productivity in production plants. The fast dynamics of axis movement, graphic design and the possibility of remote operation and programming bring our latest products closer to the trends of Industry 4.0.
Active for 30 years
During its 30 years of existence Strojegradnja SAS has proven itself as one of the largest European manufacturers of machines for bending sheet metal thinner than 2 mm. In 2018 we manufactured the 500th hydraulic machine in our factory, strengthening our position on the market and proving ourselves as a quality and reliable manufacturer of hydraulic bending machines.
Specifications manual decoiler
- weight: 115 kg
- working width 500 mm
- inner diameter 480-530 mm
- load capacity 1,500 kg
