Specifications wide belt grinder Brushmatic
We are pleased to introduce our new compact wide belt grinding machine (deburring machine) Brushmatic!
This beautiful simple and compact machine is suitable for deburring plasma cutting, rounding edges or polishing surfaces with a Scotch-Brite roller, using an interchangeable B-unit.
Specifications
| Specification | Value |
|---|---|
| Working width | 650 mm |
| Minimum material thickness | 0.5 mm |
| Maximum material thickness | 100 mm |
| Transport speed | 0.3 – 10 m/min |
| Number of discs | 3 |
| Diameter of disc brush (D) | 260 mm |
| Brush diameter (B) | 200 mm |
| Speed of discs (D) | 460 – 1200 RPM |
| Brush speed (B) | 500 – 1200 RPM |
| Total power (with exhaust fan) | 5 kW (7.2 kW) |
| Main engine power | 4 kW |
| Power extraction fan | 2.2 kW |
| Tension | 3×400 V / 50 Hz |
| Diameter extraction connection | 150 mm |
| Diameter pressure rollers | 45 mm |
| Machine dimensions (W x D x H) | 1200 x 1510 x 1350 mm |
| Machine weight (with exhaust fan) | 600 kg (630 kg) |
Including:
- Digital readout of table position
- Inverters for the main engines
- Machine equipped with disc brushes
- Oil and temperature resistant conveyor belt up to 120 °C
- CE certification
Options:
- Vacuum table
- Magnetic Table
- Spare rounding brush
- Spare hammer-down brush
- Interchangeable B-unit with Scotch-Brite roll
- Interchangeable B-unit with stainless steel roller
Compact Wide belt grinder – Brushmatic
from € 29.000,-
| Lease options: | € 611,- 60 months € 429,- 96 months |
General features of the Brushmatic wide belt grinder

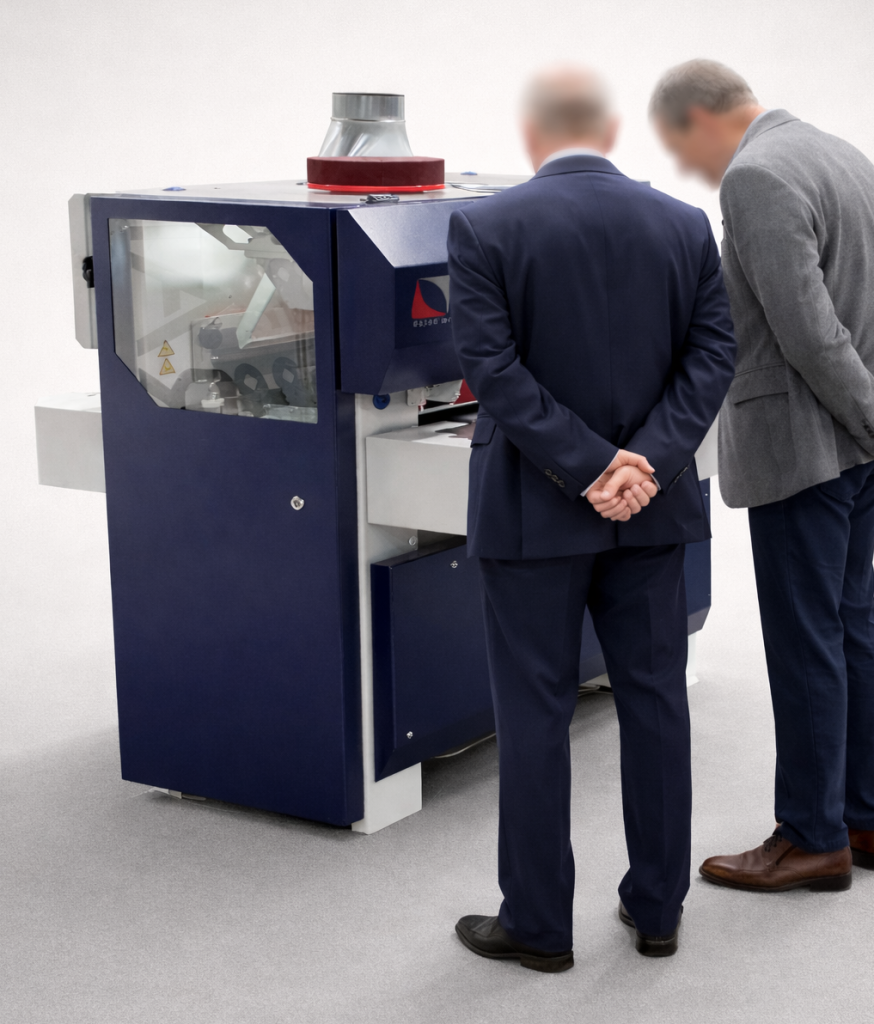

This BSM Steelline Brushmatic wide belt grinder from RWT is robust and highly regarded in the wide belt grinding market.
Major specialty of these machines is the modular construction. For this machine these are Sloughing, Edge Rounding and Flat Brushing.
In addition to the very economical purchase price, all wear parts are freely available on the market and this creates low consumption costs.
We also supply the necessary tools/consumables
The Czech supplier RWT is a 1921 company and has been on the market with wide belt grinders since 1999.
Technical solutions, versatility, processing quality and ease of operation of the machines have so far been the most important sales factors worldwide. The machines have won quite a few awards.
Request a quotation
Interested in a (similar) machine, applications and/or possibilities? Contact us with no obligation!
